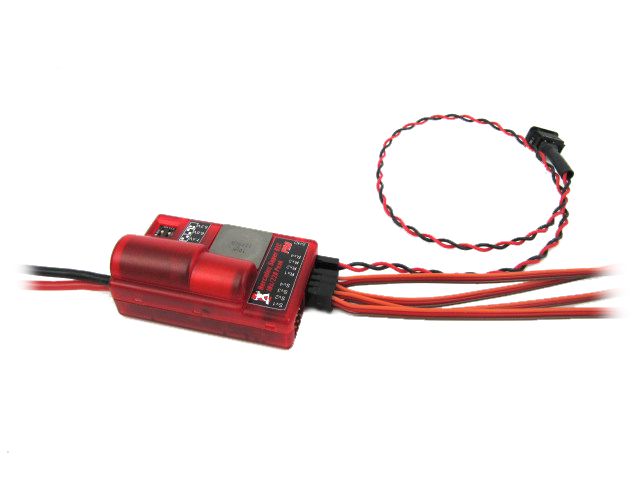

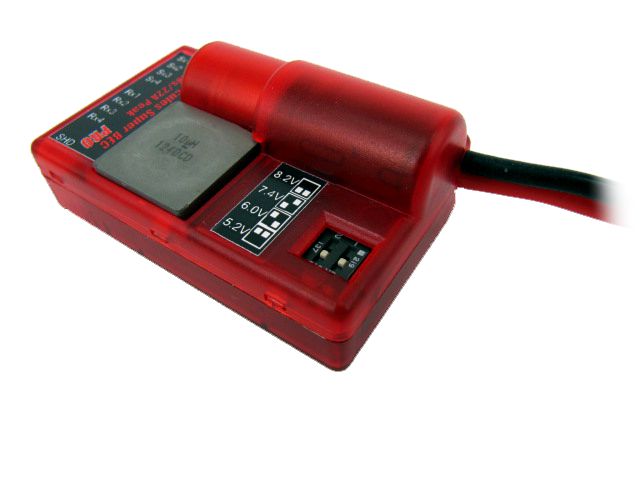

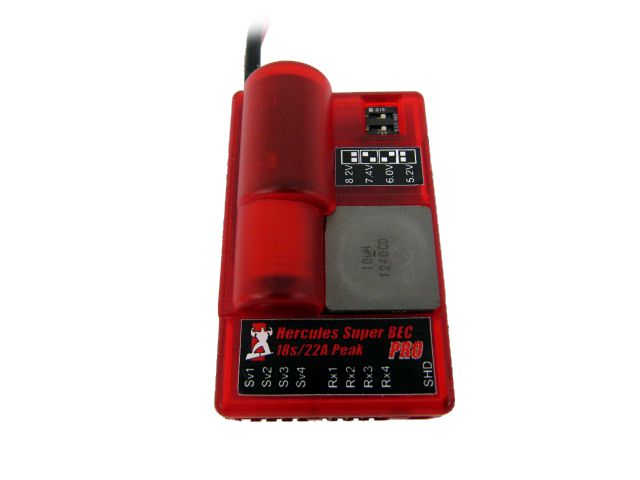

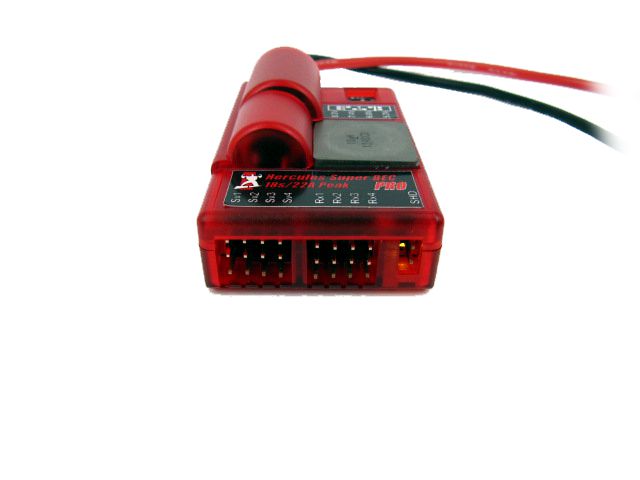

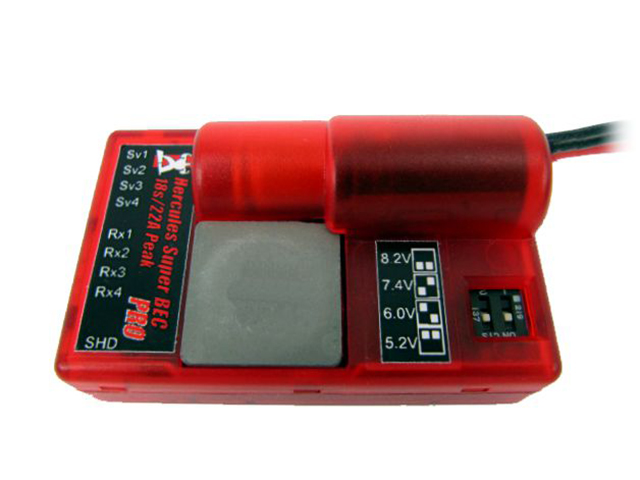

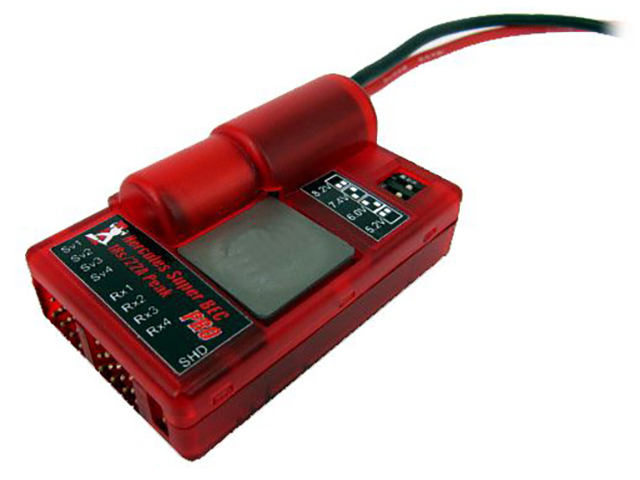

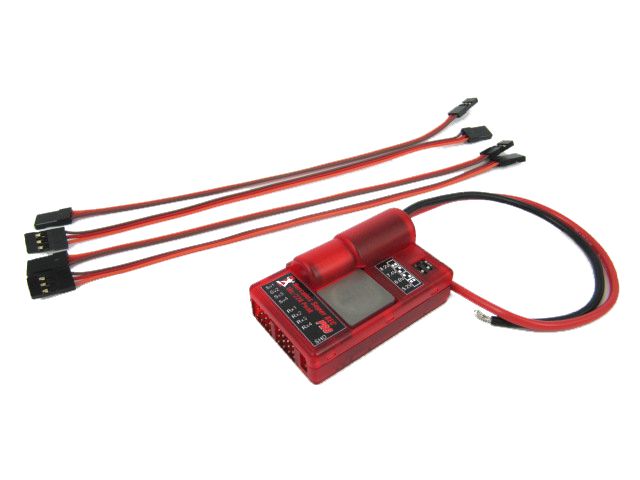

Hercules Super Battery Eliminator Circuit PRO
This new Battery Eliminator Circuit is capable of handling extreme high voltages and is made with high quality components that can withstand outstanding high current loads of 16 Amps continuous / 22 Amps peak. The Hercules Super Battery Eliminator Circuit PRO is a glitch free high efficiency, high power switching voltage regulator designed to work with all popular brands of R/C receivers and servos. It provides safe and consistent power to your R/C receiver and servo(s) that eliminates the need for a separate battery source. The Hercules Super will boost performance on your R/C model by reducing the overall weight while maintaining a high

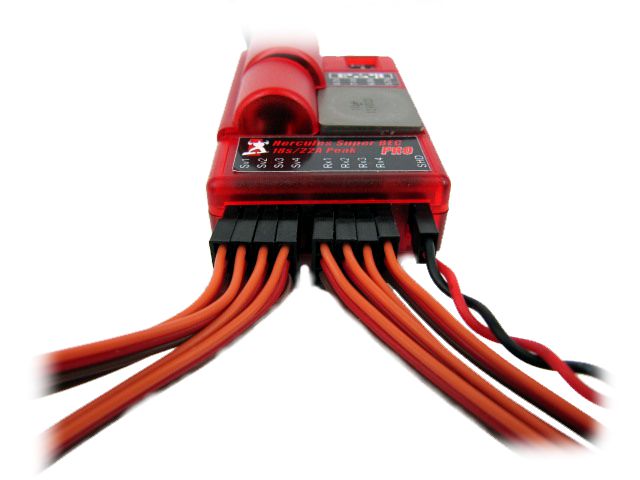

current output from high voltage sources up to a 18s LiPo battery (75.6V). The Hercules Super BEC PRO has a built in power bus system that allows multiple servos to be plugged directly into the Hercules unit. This will eliminate any unnecessary voltage drops that can occur with standard receiver connections that share one power connection with multiple servos that require high current demands. Technically it is not possible to deliver more than 10 amps through one or two servo type connectors, therefore the bus system is a must have for real current delivery.
